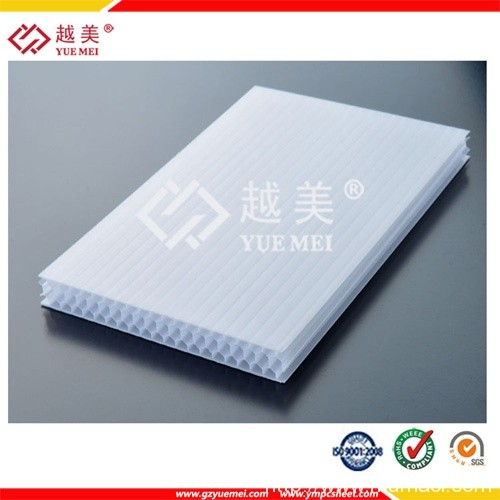

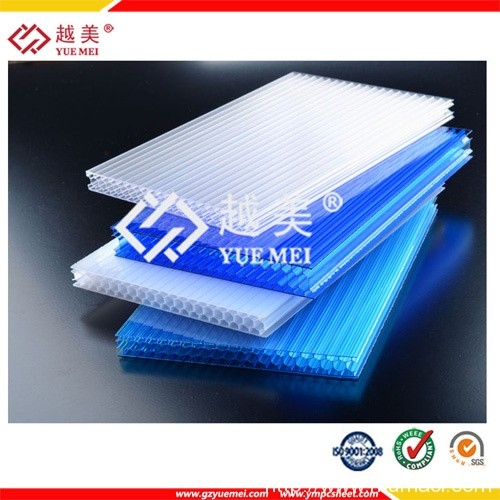

Opal Polycarbonate honeycomb sheet
Opal Polycarbonate honeycomb sheet
Polycarbonate honeycomb sheet uses the imported polycarbonate raw material;
This type which is full of pinholes has many advantages, such as steady structure, saving material, wide coverage, high strength and light weight, etc.
DESCRIPTION
Features
1) Light transmission: up to 85%
2) Impact resistance: 80 times that of glass, 15 times that of acrylic sheeting
3) Temperature resistance range: -40 – +120°C
4) Quality:100% virgin bayer material, 50 micron UV layer,10 years warranty,approved by ISO9001: 2008,delivery time 7-10 days
5) No yellowing
Specification
Item | Standard Size (mm) | Thickness (mm) | Weight (kg/ m2) | Min Curving Radius (mm) | Min Span Accordingly (mm) | General Color |
PC/Polycarbonate Honeycomb Sheet | Length: 6000 Width: 2100 | 6 | 1.7 | 1050 | 2100 | Clear Opal Bronze Blue Lake blue Grass green |
8 | 1.9 | 1400 | 2800 | |||
10 | 2.1 | 1750 | 3500 | |||
12 | 2.3 | 2100 | 4200 |
Note: Special colors and specifications can be customized.
Application
The lighting ceiling of office building, department store, hotel, villas, school, hospital, stadium, entertainment center and the public facilities.
The noise barrier of highway and city viaduct road
The atrium of agricultural greenhouse, flowers greenhouse and indoor swimming pool
The canopy of subway entrances, station, parking lot, shopping mall, pavilion, lounge, corridor
Advertising light box, panel of bus station, advertising display card
Indoor partition of office and home, pedestrian passageway, guardrail, balcony, bathroom,etc
