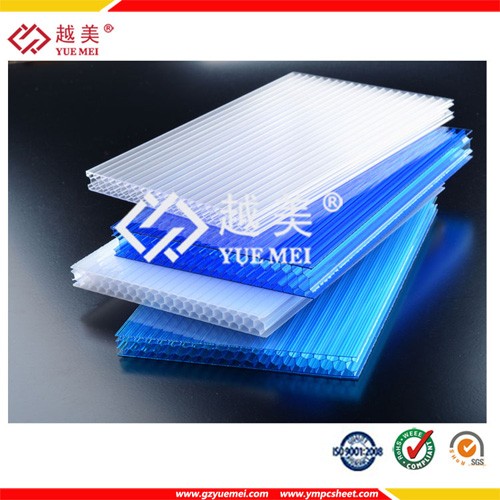

Colorful Polycarbonate honeycomb sheet

Colorful Polycarbonate honeycomb sheet

Polycarbonate honeycomb sheet uses the imported polycarbonate raw material; This type which is full of pinholes has many advantages, such as steady structure, saving material, wide coverage, high strength and light weight, etc.

The honeycomb cores are connected by hexahedral pillars; it looks like numerous H-section steel.

The core distributed and fixed in the entire board, to make sure the PC sheet more stable, more bending resistance and strength resistance, the wind resistance of this structure is also much better than general twin-wall PC hollow sheet.


GET A QUOTE

DESCRIPTION

Features

1. Transmission of light: The light transmission of PC honeycomb sheet is as high as 63.6%, it can be equivalent to that of glass. UV coating sheet will not turn yellowing、atomization、pervious to light when exposure in the sun. The transmission loss is only 6% after ten years, but the PVC sheet is as high as 15%-20%, fiber glass sheet is as high as12% – 20%.

2. Impact: PC is one of the best thermoplastics of impact resistance; the impact resistance is 10 to 27 times of glass and plexiglass

3. UV: PC honeycomb sheet is coating with anti-ultraviolet (UV) on one side, the other side is with anti-condensation treatment, it is with the functions of anti-ultraviolet, insulation, anti-drop. It can prevent the ultraviolet getting through; it is suitable for protecting valuable works of art and exhibits, to make it from UV damage.

4. Light weight: The proportion of PC is only 1/12 of normal glass, it’s unbreakable, to save the cost of transportation, unloading, installing and frame supporting.

5. Flame: The national standard GB/T2408-2008 confirmed that the PC honeycomb sheet is a flame, HB level. The itself ignition of PC honeycomb sheet is 580 Celsius degrees, self-extinguishing when away from the fire, does not produce toxic gases when burned, and will not contribute to the spread of fire.


Specification

Item

Standard Size

(mm)

Thickness

(mm)

Weight

(kg/ m2)

Min Curving Radius

(mm)

Min Span Accordingly (mm)

General Color

Polycarbonate Honeycomb Sheet

Length: 6000

Width:

2100

6

1.7

1050

2100

Clear

Opal

Bronze

Blue

Lake blue

Grass green

8

1.9

1400

2800

10

2.1

1750

3500

12

2.3

2100

4200

Note: Special colors and specifications can be customized.


Application
  1. The lighting ceiling of office building, department store, hotel, villas, school, hospital, stadium, entertainment center and the public facilities.

  2. The noise barrier of highway and city viaduct road

  3. The atrium of agricultural greenhouse, flowers greenhouse and indoor swimming pool

  4. The canopy of subway entrances, station, parking lot, shopping mall, pavilion, lounge, corridor

  5. Advertising light box, panel of bus station, advertising display card

  6. Indoor partition of office and home, pedestrian passageway, guardrail, balcony, bathroom,etc
