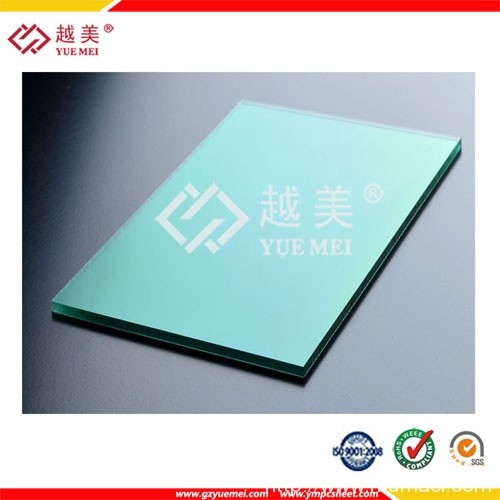

Green Polycarbonate solid sheet

Green Polycarbonate solid sheet

YUEMEI PC (Polycarbonate) solid sheet has another name called “safety glass”, with the high shock strength and good transparency, it saves time and labor. It is widely used in business building, home decoration, municipal construction, etc.


GET A QUOTE

DESCRIPTION

Features
  1. Impact resistance: PC/Polycarbonate solid sheet has excellent impact resistance; its impact strength is 250-300 times of ordinary glass, 20-30 times of acrylic sheet, 2 times of tempered glass, almost no risk of fracture. 3kg hammer falling below two meters without cracks. It has the reputation of “bullet-proof glass,”

  2. Light transmission: Excellent lighting, the transparency is comparable with the glass. The UV coating sheet in the sun exposure will not become yellowing, atomization, poor light transmission.

  3. Weather resistance: It has UV coating on the surface of sheet, and prevents the sheet becoming yellow under the sunshine.

  4. Flame resistance: PC/Polycarbonate solid sheet itself is not spontaneous combustion, and it has self-extinguishing. In line with the EU ROHS Directive and strict UL safety standard, UL94 flammability reached the requirements of 5VA grade level. The itself ignition point of PC/Polycarbonate solid sheet is 630 degrees Celsius, self-extinguishing when away from the fire, does not produce toxic gases when burned, and will not contribute to the spread of fire.5. Heat resistance, cold resistance: in Celsius -40 ℃ to +120 ° C temperature range without causing the deformation quality deterioration.

  5. Heat resistance, cold resistance: In Celsius -40 ℃ to +120 °C temperature range will not cause the deformation quality deterioration.

  6. Light weight: Only half weight of glass in the same thickness. It can be easy to hand, drill, truncate when installing, it is difficult to break and easy processing.

  7. Sound insulation: The sound insulation effect of PC/Polycarbonate solid sheet is obvious. It has better sound insulation compared with the same thickness of glass and acrylic sheet. Under the same conditions of same thickness, the acoustic volume of PC/Polycarbonate solid sheet is 3-4DB higher than that of glass. PC/Polycarbonate is the first selection of noise barrier material in the highway in the world.

  8. Anti-condensation: The outdoor temperature is 0 ℃, the indoor temperature is 23 ℃.There is non-condensing inside surface of the material when the indoor relative humidity below 80%.


Specification

Item

Size

(mm)

Thickness

(mm)

Weight

(kg/m2

Min bending semi-diameter

(mm)

Min span

(mm)

color







PC Solid Sheet

width:

1220

1560

1820

2100

Length:

not limited



1.5

1.8

270

540

Clear,

Opal,

lake blue,

Green, Bronze

2

2.4

360

720

3

3.6

540

1080

4.5

5.4

810

1620

6

7.2

1080

2160

10

12

1800

3600


Application

1. Telephone booth, Advertising board, lighting box, exhibition.

2. Interior and exterior decoration in commercial building, curtain walls of modern building.

3. Instruments and meters, and military industry.

4. Front wind shields of motorcycles, airplanes, trains, liners, vehicles, motorboats, submarines and police glass shield.

5. Decoration and lighting, and Space separator of bank, hospital, airport, station, kindergarten.

6. Agricultural greenhouses and raising sheds.

7. Lighting of modern villa, garage, and rainproof lighting shed of underground garage entryway.
