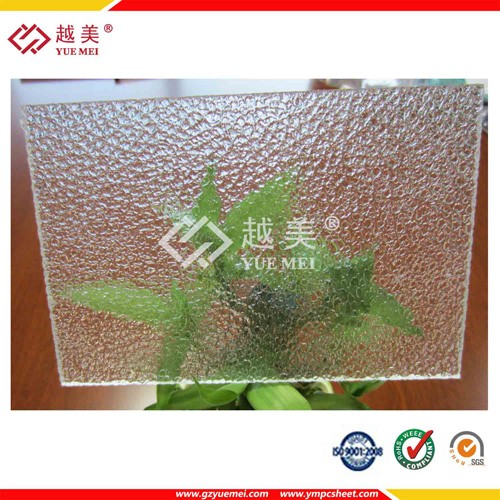

Clear Polycarbonate Small Embossed Sheet
Clear Polycarbonate Small Embossed Sheet
YUEMEI Polycarbonate(PC) small embossed sheet enhances the toughness, It can reflect the highlight to the sheet surface，disperse the reflected light to make it soft, to reduce light pollution.
The surface looks graceful appearance and it’s scratching resistance. It is particular suitable for various kinds of design.
DESCRIPTION
Features
- Impact resistance: Polycarbonate(PC) small embossed sheet has excellent impact resistance; its impact strength is 250-300 times of ordinary glass, 20-30 times of acrylic sheet, 2 times of tempered glass, almost no risk of fracture. 3kg hammer falling below two meters without cracks. It has the reputation of “bullet-proof glass,”
- Light transmission: Excellent lighting. The UV coating sheet in the sun exposure will not become yellowing, atomization, poor light transmission.
- Weather resistance: It has UV coating on the surface of sheet, and prevents the sheet becoming yellow under the sunshine.
- Flame resistance: Polycarbonate(PC) small embossed sheet itself is not spontaneous combustion, and it has self-extinguishing. In line with the EU ROHS Directive and strict UL safety standard, UL94 flammability reached the requirements of 5VA grade level. The itself ignition point of Polycarbonate(PC) small embossed sheet is 630 degrees Celsius, self-extinguishing when away from the fire, does not produce toxic gases when burned, and will not contribute to the spread of fire.
- Heat resistance, cold resistance: In Celsius -40 ℃ to +120 ° C temperature range will not cause the deformation quality deterioration.
- Light weight: Only half weight of glass in the same thickness. It can be easy to hand, drill, truncate when installing, it is difficult to break and easy processing.
- Sound insulation: The sound insulation effect of Polycarbonate(PC) small embossed sheet is obvious. It has better sound insulation compared with the same thickness of glass and acrylic sheet. Under the same conditions of same thickness, the acoustic volume of PC small embossed sheet is 3-4DB higher than that of glass. PC is the first selection of noise barrier material in the highway in the world.
Specification
Item | Standard Width (mm) | Thickness(mm) | Weight(kg/ m2) | Min Curving Radius(mm) | Min Accordingly (mm) | General Color |
Polycarbonate(PC) Small Embossed Sheet | 1220 1560 1820 2100 | 2.0 | 2.4 | 360 | 720 | Clear Blue Green Opal Bronze Orange Yellow |
2.4 | 2.88 | 430 | 860 | |||
3.0 | 3.6 | 540 | 1080 | |||
3.8 | 4.56 | 680 | 1360 | |||
4.0 | 4.8 | 720 | 1440 | |||
5.0 | 6.0 | 900 | 1800 | |||
6.0 | 7.2 | 1080 | 2160 |
Remark: 2.0mm-3.0mm 30m length can be in roll. 3.6mm-4.5mm 18m length can be in roll.5mm or above packed as sheet.
Note: Special colors and specifications can be customized.
Application
Architectural lighting, interior partition/screen, kitchen cupboard door, interior decoration, furniture, bathroom design
Indoor partition of furniture、office, pedestrian passageway, fence, balcony, the sliding door of bathroom
Inside and outside decoration of commercial building, curtain wall of modern city building
Aviation transparent container, motorcycle front windshield, plane, train, ship, automobile, boat, submarine, and glass police shield; Telephone booth, advertising sign, light box advertising.
Arrangement of display and exhibition.
Instrument, meter, switchgear panel for high and low voltage and military industry, etc.
Wall, roof, screen and other top-grade interior decoration material
