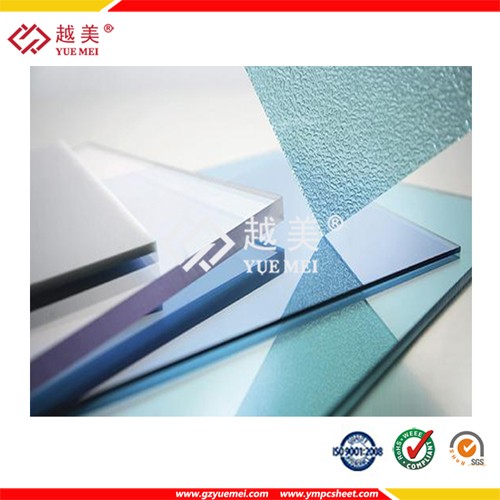

YUEMEI Polycarbonate Sheet with 2 sides uv has another name called “safety glass”, with the high shock strength and good transparency, it saves time and labor. It is widely used in business building, home decoration, municipal construction, etc.
1. Impact resistance: Polycarbonate/PC Sheet has excellent impact resistance; its impact strength is 250-300 times of ordinary glass, 20-30 times of acrylic sheet, 2 times of tempered glass, almost no risk of fracture. 3kg hammer falling below two meters without cracks. It has the reputation of “bullet-proof glass,”
2. Light transmission: Excellent lighting, the transparency is comparable with the glass. The UV coating sheet in the sun exposure will not become yellowing, atomization, poor light transmission.
3. Weather resistance: It has UV coating on the double sides surface, and prevents the sheet becoming yellow under the sunshine.
4. Flame resistance: PC sheet itself is not spontaneous combustion, and it has self-extinguishing. In line with the EU ROHS Directive and strict UL safety standard, UL94 flammability reached the requirements of 5VA grade level. The itself ignition point of PC solid sheet is 630 degrees Celsius, self-extinguishing when away from the fire, does not produce toxic gases when burned, and will not contribute to the spread of fire.5. Heat resistance, cold resistance: in Celsius -40 ℃ to +120 ° C temperature range without causing the deformation quality deterioration.
5. Heat resistance, cold resistance: In Celsius -40 ℃ to +120 °C temperature range will not cause the deformation quality deterioration.
6. Light weight: Only half weight of glass in the same thickness. It can be easy to hand, drill, truncate when installing, it is difficult to break and easy processing.
7. Sound insulation: The sound insulation effect of PC sheet is obvious. It has better sound insulation compared with the same thickness of glass and acrylic sheet. Under the same conditions of same thickness, the acoustic volume of PC sheet is 3-4DB higher than that of glass. PC is the first selection of noise barrier material in the highway in the world.
8. Anti-condensation: The outdoor temperature is 0 ℃, the indoor temperature is 23 ℃.There is non-condensing inside surface of the material when the indoor relative humidity below 80%.
Item | Standard Width (mm) | Thickness (mm) | Weigh (kg/m2) | Min Curving Radius (mm) | Min Span Accordingly (mm) | General Color |
PC Sheet With 2 Sides UV | 1220 1560 1820 2100 | 1.5 | 1.8 | 270 | 540 | Clear Opal Bronze Blue Lake blue Grass green |
2.0 | 2.4 | 360 | 720 | |||
2.4 | 2.88 | 430 | 860 | |||
3.0 | 3.6 | 540 | 1080 | |||
3.8 | 4.56 | 680 | 1360 | |||
4.0 | 4.8 | 720 | 1440 | |||
5.0 | 6.0 | 900 | 1800 | |||
6.0 | 7.2 | 1080 | 2160 | |||
8.0 | 9.6 | 1450 | 2900 |
Remark: 1.5mm-3.0mm, 30m length can be in roll. 3.6mm-4.5mm,18m length can be in roll.5mm or above, packed as sheet.
Note: Special colors and specifications can be customized.
1. Building material industry
2. Automobile manufacturing industry
3, Production of medical device
4, Aviation and aerospace field
