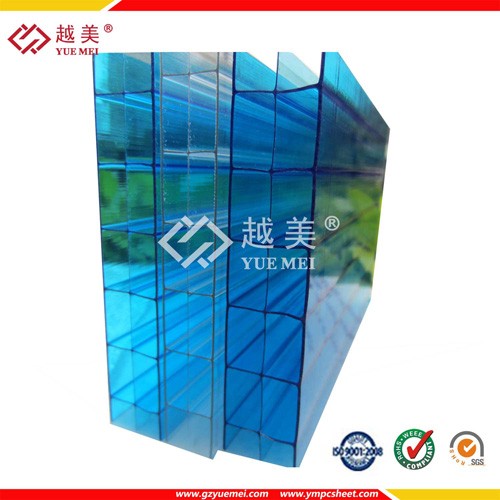

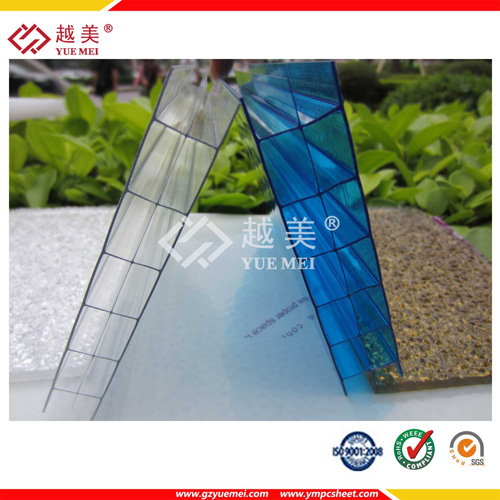

Blue Polycarbonate # type triple wall hollow sheet
Blue Polycarbonate # type triple wall hollow sheet
YueMei PC-Polycarbonate # type triple-wall hollow sheet uses the imported polycarbonate raw material.
In the sheet surface uniformly distributed with high concentrations of UV co-extruded UV protection layer, it can completely prevent the UV damage and prolong the life of the sheet.
DESCRIPTION
Features
1. Transmission of light: The light transmission of PC # type triple-wall hollow sheet is as high as 89%, it can be equivalent to that of glass. UV coating sheet will not turn yellowing、atomization、pervious to light when exposure in the sun. The transmission loss is only 6% after ten years, but the PVC sheet is as high as 15%-20%, fiber glass sheet is as high as12% – 20%.
2. Impact: PC is one of the best thermoplastics of impact resistance; the impact resistance is 10 to 27 times of glass and plexiglass
3. UV: PC # type triple-wall hollow sheet is coating with anti-ultraviolet (UV) on one side, the other side is with anti-condensation treatment, it is with the functions of anti-ultraviolet, insulation, anti-drop. It can prevent the ultraviolet getting through; it is suitable for protecting valuable works of art and exhibits, to make it from UV damage.
4. Light weight: The proportion of PC is only 1/12 of normal glass, it’s unbreakable, to save the cost of transportation, unloading, installing and frame supporting.
5. Flame: The national standard GB/T2408-2008 confirmed that the PC # type triple-wall hollow sheet is a flame, HB level. The itself ignition of PC # type triple-wall hollow sheet is 580 Celsius degrees, self-extinguishing when away from the fire, does not produce toxic gases when burned, and will not contribute to the spread of fire.
6. Bendable: Using cold-formed way at the site to install as vaulted according to the design. The minimum bend radius is 175 times of the thickness. It also can be warm-bended.
Specification
Item | Standard Size (mm) | Thickness (mm) | Weight (kg/ m2) | Min Curving Radius (mm) | Min Span Accordingly(mm) | General Color |
Polycarbonate #-Type Triple-wall Hollow Sheet | Length: 6000 Width: 1220-2100 | 10 | 2.0 | 1850 | 3600 | Clear Opal Bronze Lake blue Blue Glass green |
12 | 2.2 | 2220 | 4300 | |||
14 | 2.4 | 2590 | 5000 | |||
16 | 2.7 | 2960 | 5800 | |||
18 | 3.0 | 3330 | 6400 | |||
20 | 3.3 | 3700 | 7000 |
Application
The lighting ceiling of office building, department store, hotel, villas, school, hospital, stadium, entertainment center and the public facilities.
The noise barrier of highway and city viaduct road
The atrium of agricultural greenhouse, flowers greenhouse and indoor swimming pool
The canopy of subway entrances, station, parking lot, shopping mall, pavilion, lounge, corridor
Advertising light box, panel of bus station, advertising display card
Indoor partition of office and home, pedestrian passageway, guardrail, balcony, bathroom,etc
